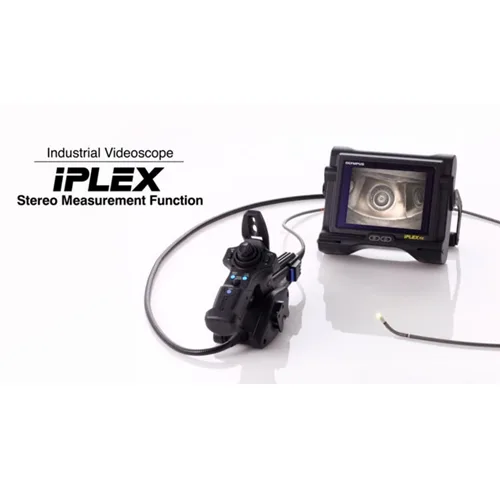

New Olympus IPLEX RT IV9635 Industrial Inspection VideoScope IV9635RT ready in stock for sale with best price US $7850.00. Contact us immediately for purchase.

A Videoscope with a Clear Vision

The IPLEX RX and IPLEX RT provide unsurpassed image quality yet are user‐friendly, and boast a portable design. The videoscopes are ideal for inspectors who require uncompromised and precise inspections.

Exceptional Image Quality
– Our brightest and sharpest image quality
– Recorded images and movies in high quality
– Expanded image adjustment capability* for optimum inspections
– Large 6.5 in. monitor

Operation with Ease
– Compact and portable casing
– Multi‐positioning design for comfortable inspection for any application
– Excellent scope maneuverability with TrueFeelTM and Tapered FlexTM technologies
– Intuitive and quick operation

Rugged and Durable
– Heavy‐duty system compliant with MIL‐STD and IP55
– High‐durability insertion tube withstanding crush and abrasion
– 100 °C / 212 °F capable insertion tube with temperature alert*

Advanced Functionality
– Stereo Measurement* for objective inspections (to be released in May 2014)
– PDF display function* enabling efficient inspection work
– InHelp™ software to streamline all steps from inspection to report generation

Exceptional Image Quality to Improve Inspection Quality

Our Best Image Quality
The IPLEX RX and RT feature the best image quality of our videoscopes. Our unique PulsarPicTM image processor reduces noise and sharpens images, resulting in the exceptionally high resolution image.
The IPLEX RX and RT faithfully and brightly reproduce very small defects, and the sharp and clear images enable accurate and reliable inspections.

2X Brighter Illumination System
The IPLEX RX and RT feature a new LED illumination system that is approximately twice as bright as conventional videoscopes, while dynamically adjusting light output to reduce halation when metal or reflective surfaces are inspected.

The PulsarPicTM image processor interacts intelligently with our illumination system to deliver an optimized amount of light and gain enhancement to provide images that are very clear and sharply defined.

Still Images and Movies as Crisp as Live Images
The IPLEX RX and RT can record inspected images to a removable USB flash drive as JPEG still images and MPEG–4 movies.

The improved image quality of recorded images and movies enables accurate image diagnosis not only in the field but also at the office with the use of our free image management software, InHelp viewer.

Large Monitor Providing Easy Yet Accurate Inspections
The compact IPLEX RX and RT are equipped with a 6.5 in. monitor. The large monitor displays small defects clearly from a comfortable distance for inspectors for easy identification.

Rugged and Durable for Reliable Performance Even in Harsh Environments

Robust Body
The IPLEX RX and RT pass the impact tests including vibration and drop from a height of 1.2 m/ 3.9 ft.

The tough system compliant with Military Standards withstands rough treatment and ensures reliable operation in difficult environments.

Operable in All Weather
The IPLEX RX and RT comply with internationally recognized Military Standards (MIL‐STD‐810F/G and MIL-STD‐461F)* as well as IP55, passing a range of severe environmental tests, such as blowing rain/dust, high humidity, and icing rain. In addition, the daylight view monitor featuring low‐ reflection displays clear images even under bright sunlight

High‐durability Insertion Tube
Operators are often required to inspect objects inside narrow paths with rough or sharp surfaces. The insertion tube of the IPLEX RX and RT has a crush and abrasion‐ proof design and is covered with a tough, special processed tungsten braid.

Specifications:

IV9635RT

Scope Variation

Scope Diameter : φ6.0 mm (0.236 in)
Scope Length : 3.5 m (11.5 ft)
Exterior : High durability tungsten braid
Tube Flexibility : Tapered FlexTM tube with flexibility gradually increasing toward the distal end
Articulation Angle up/Down/Right/Left : 130°

Insertion Tube

Articulation mechanics : Improved TrueFeelTM scope tip articulation with electronic power-assisted, manual articulation
Illumination : Ultra-high intensity LED illumination
Optical Tip Adaptor Locking Mechanism : Double threaded attachment, with O-ring seal

Package includes:

– Olympus iPLEX RT IV9635RT Industrial Videoscope
– Probe: Insertion tube 6.0mm diameter, 3.5m length
– Olympus Smart Battery Charger
– RS232 Power Cable
– 2x AC Adapter/Charger
– 2x Power Cord
– Strap For Unit
– User Manual On CD-ROM
– Hard Carrying Case
– Warranty Card
– Calibration Certificate
